NF30 Series Low Pressured Industrial NF Membrane

Product Overview

Low Pressured Industrial NF Membrane (NF30 Series) are specifically applied for removing TOC, THM and MOPs, which has a high removal rate especially regarding PPCPs, EDCs and POPs, and high permeability for dissolved inorganic salt. The products could have a very high systematically comprehensive performance under ultra-low operation pressure, low energy consumption and lower operational cost, which are fit for the applications of potable water supply and other areas.

Product Features

Selective Separation：the product can greatly remove endocrine disturbance, antibiotics, by-products of disinfectant and other MOPs with appropriate desalination and retention of minerals.

High System Recovery Rate：System Recovery Rate can be as high as 95%;

Low Operation Pressure：Operation pressure range is between 0.3 - 0.5 MPa,which is reduced by over 30% compared with conventional membrane;

Lower Operation Cost：High water yielding, low desalination rate, less chemical consumption and low operation energy consumption.

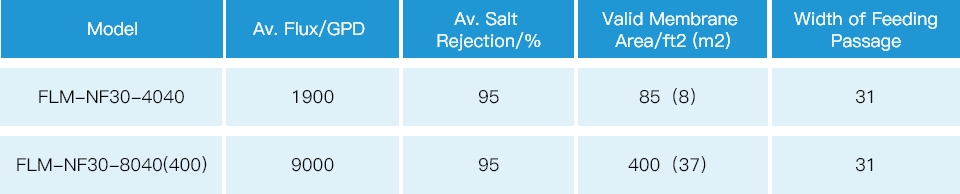

Performance Parameters

组 66.jpg

Testing Conditions：Front Pressure 70psi(0.48MPa)、Temperature: 25℃、2000 ppmMgSO4、Recovery Rate 15%、pH7.5-8.0

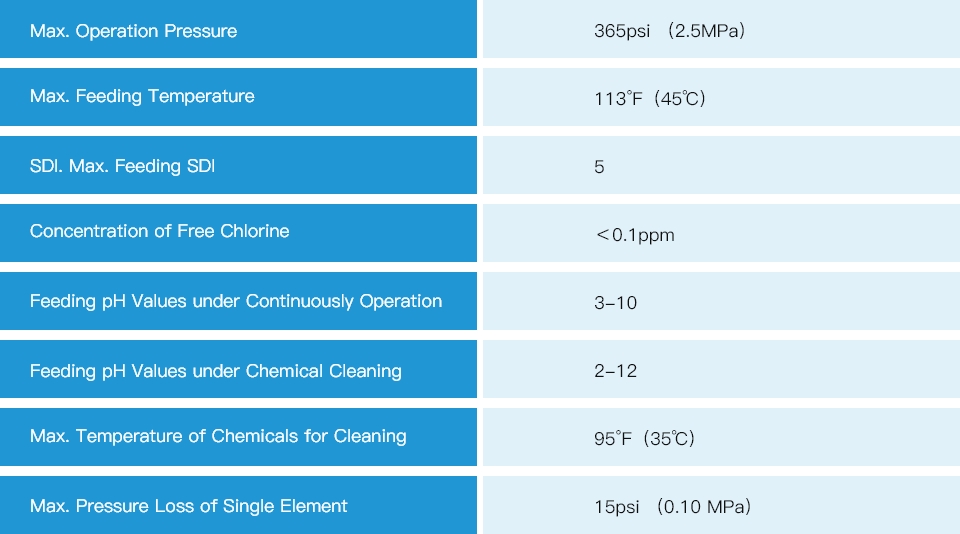

Operation Limits

组 67.jpg
